| Brand Name : | TS |
| Model Number : | TSP-40 |
| Certification : | ISO9001 |
| Payment Terms : | TT or L/C |
| Delivery Time : | 1months |
If you need our products, contact or check on line.
Or email me directly:3123981177@163.com
Technical Literature

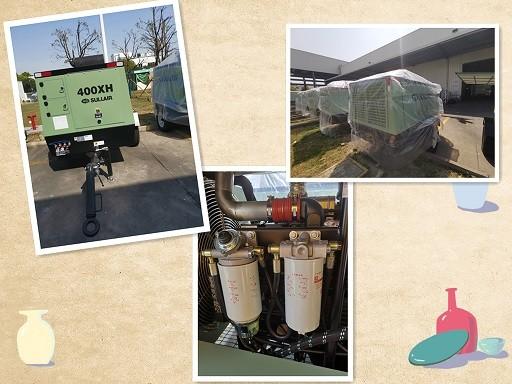

Specifications, weight and dimension- Sullair DPQ400XH series portable air compressor
| MODEL | DPQ400XH |
| Complete machine | |
| Nominal volume capacity m3/min(CFM) | 11.3(400) |
| Rated discharge pressure bar (psi) | 13.8(200) |
| Working pressure range bar | 6.5-13.8 |
| Max. towing speed km/h | 35 |
| Noise sound level ± 3dB (A) (away from 7m) | 81 |
| Machine weight kg | 2195kg (4850 Lbs) |
| Dimensions: L×W×H mm | 4053×1995×2230 |
| Max. working altitude -m | 3048 |
| Diesel Engine | |
| Manufacturer | Dongfeng CUMMINS |
| Model | QSB5.9-C |
| Full-load/no-load speed(rpm) | 2250/1600 |
2 Main specifications
a) Drilling rig technical parameter:
Drilling pipe Diameter X Length Φ60X1500mm (Air/mud drilling pipe)
Φ75X1500mm (Auger drilling pipe)
Power swivel Rated torque 1150N.m
Rotation speed range 0-150r/min
Pulldown & hoisting system Pull up & pull down capacity 2000kg
Pulldown force 7.8kN
Max hoisting speed 0.73m/s
Hydraulic system Working pressure 200 bar (rotation) /173bar
(hoisting)/70bar (pulldown)
Gasoline Engine Output power: 27hp/3600r/min
Weight
(Not include drilling tools) Drilling rig with auger drilling:
415kg
Drilling rig with mud drilling: 535kg
Drilling rig with air hammer drilling/air drilling: 680kg
External dimension L1700 X W1250 X H3100(mm)
b) Drilling method, depth and hole diameter
Drilling method Drilling depth Drilling hole diameter
Air hammer drilling 40 m/131ft 90mm
3.5”
Air drilling
Auger drilling 20m/65ft
Mud drilling 30m/100ft
|
|
